InCoax Home

Extends broadband connectivity throughout your home

InCoax Home is a series of reliable MoCA Home
Network Adapters



digital divide

The InCoax Home is series of MoCA Home 2.5 network adapters for extending broadband connectivity throughout the home using the existing coaxial cable network. The adapters are perfect for removing dead spots in your home network and offer throughput speeds of up to 2.5 Gbps. The InCoax Home technology features high performance, low latency and the security necessary for a reliable home network, being the fastest in-home backbone for Wi-Fi.

Download Product Sheet

Key features

  • Supports symmetrical Gigabit or MultiGigabit data rates
  • Connects to antenna outlet
  • Easy self-installation by subscriber
  • Up to 16 Adapters, able to communicate with each other
  • Support TR-069 /HTTP management function
  • Automatic pairing function or optional MPS
    (MoCA Protected Setup) function button
  • Can co-exist with TV services
  • Approved for North America

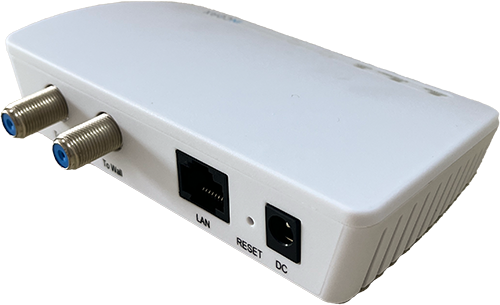

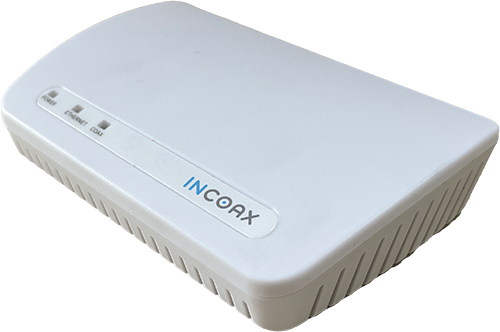

InCoax Home H251

InCoax Home H251 is capable of maximum 2.5 Gbps symmetrical data rates on the ETH-port.

MoCA bands (data rate capabilities on the RF-port):

  • MoCA Home Band E (400 – 700 MHz), 1.5 Gbps MAC Rate
  • MoCA Home Extended Band E (400 – 800 MHz), 2.0 Gbps MAC Rate
  • MoCA Home Extended Band D (1125 – 1675 MHz), 2.5 Gbps MAC Rate

APPROVALS

  • Safety: FCC, UL Certificates (power supply adapter)
      CISPR PUB.22, FCC Part 15 Subpart B
  • ROHS: ROHS 2.0 standard 2011/65/EU, (EU) 2015/863

——-

InCoax Home H101

InCoax Home H101 is capable of maximum 1.0 Gbps symmetrical data rates on the ETH-port.

MoCA bands (data rate capabilities on the RF-port):

  • MoCA Home Band E (400 – 700 MHz), 1.5 Gbps MAC Rate
  • MoCA Home Extended Band E (400 – 800 MHz), 2.0 Gbps MAC Rate
  • MoCA Home Extended Band D (1125 – 1675 MHz), 2.5 Gbps MAC Rate

APPROVALS

  • Safety: FCC, UL Certificates (power supply adapter)
      CISPR PUB.22, FCC Part 15 Subpart B
  • ROHS: ROHS 2.0 standard 2011/65/EU, (EU) 2015/863
